Thinking about building a stone retaining wall in BC? Let’s talk about what it’ll actually cost. In British Columbia, you’re looking at anywhere from $20 to $88 per square foot installed for stone retaining walls, though rock retaining walls usually land between $45 and $65 per square foot, depending on the stone you use and what your property is like. There’s a big range, and that’s not just random—it really does come down to materials, labour, and how tricky your job is.
I’ve seen a lot of homeowners caught off guard by the final bill—not because the quote was off, but because things like site prep, drainage, or engineering weren’t on their radar. Especially in places like Parksville and central Vancouver Island, where soil and weather can change from one street to the next, these extra steps really matter. Sometimes, the stone you pick isn’t even the biggest factor.
If you’ve got a good sense of what goes into the price, you’ll make better calls on what to use, when to build, and how big to go. Honestly, the difference between a wall that lasts and one that needs fixing in five years usually comes down to planning, not just the stone or who installs it.
Key Takeaways
- Stone retaining walls in BC usually cost $20 to $88 per square foot, with most jobs between $45 and $65 per square foot installed
- Site conditions, drainage, and wall height have a bigger effect on price than just materials or labour
- Proper engineering and prep matter way more for long-term performance than simply picking a certain stone

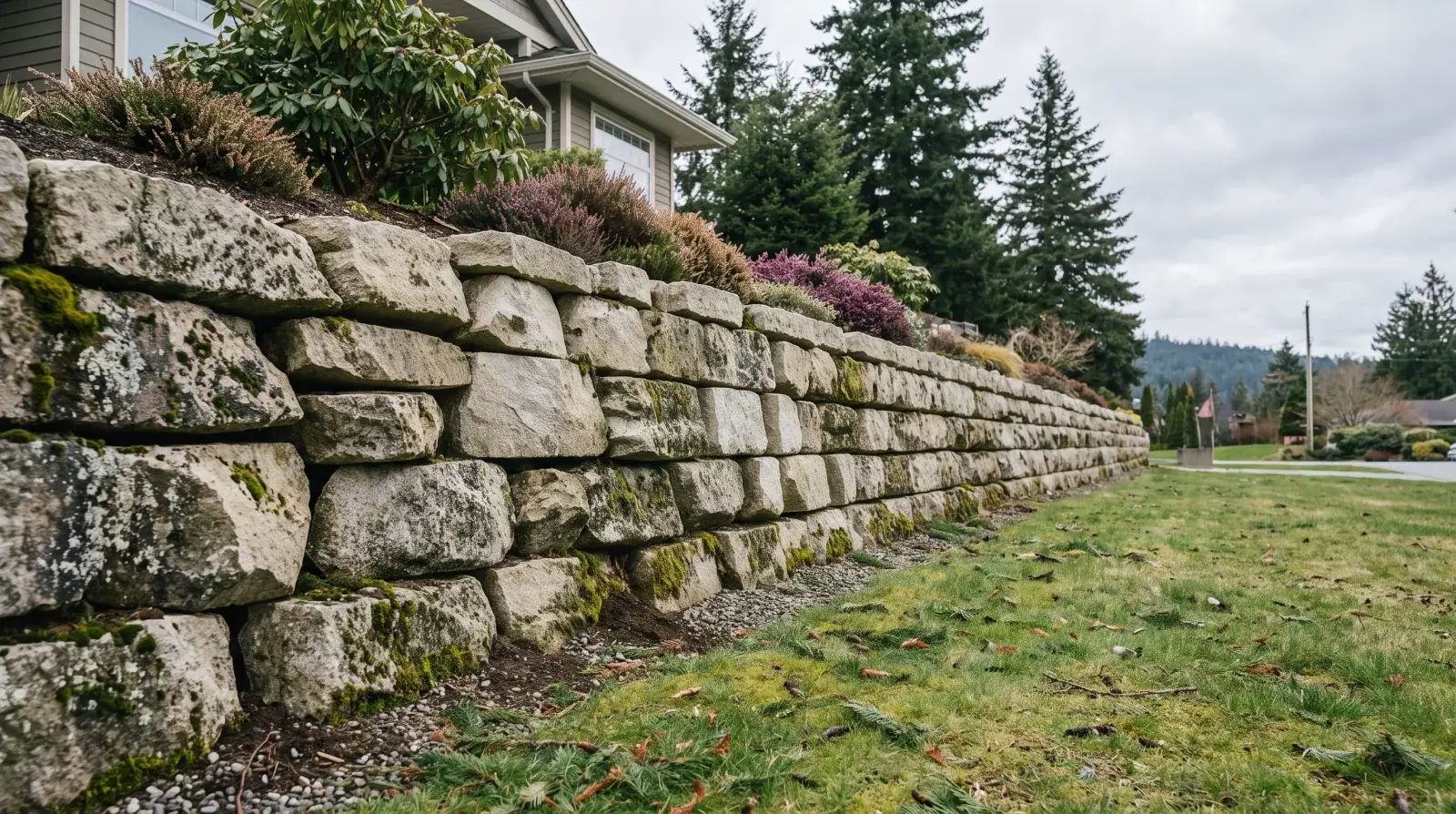

Stone Retaining Wall Cost Per Foot in BC
From what I’ve seen around Central Vancouver Island, stone retaining walls cost anywhere from $45 to $88 per square foot installed. The price depends on what you’re building with and how high your wall needs to be. Material-only jobs are a different story from full installs, and things like access and soil can swing the cost quite a bit.
Average Cost Ranges by Material and Height
Most natural stone retaining walls I’ve dealt with come in between $45 and $65 per square foot for standard builds. For 2- to 4-foot-tall walls—which are pretty common for homes in Parksville—the price goes up as you add height or pick fancier materials.
Magnum Stone and Verti Block systems are pricier, running $80 to $88 per square foot installed (see specialty pricing). These block systems cost more upfront, but they’re easier to work with than irregular stone and go up faster.
Rock retaining walls built with local stone usually cost $45 to $65 per square foot. If you’ve got good access, this is often the most budget-friendly pick since Vancouver Island has plenty of rock to go around.
For walls over 4 feet, I’ve seen prices jump to $325 to $450 per linear foot. That’s because you need real engineering and drainage to handle the extra soil pressure, especially with our rainy winters.
Installed Versus Material-Only Pricing
There’s a big gap between material-only and installed prices. If you’re just paying for labour, machine and operator time is about $215 per hour, or $2,150 for a full 10-hour day.
Buying materials only can save you 40 to 50 percent on labour, but honestly, unless you know what you’re doing and have the right gear, it’s risky. Our winters are wet, and any shortcuts on drainage or prep will cost you way more to fix later.
Fully installed pricing covers everything—materials, machines, labour, and laser levelling. For a 50-foot long, 4-foot tall wall, this approach makes life easier and pretty much guarantees the drainage and backfill are done right.
I’ve also seen average prices around $66 CAD per square foot in BC, which matches what I see on most residential jobs with average access.
Local Pricing Patterns on Central Vancouver Island
Getting equipment onto your lot is a big deal here. If you’ve got a narrow yard or steep slope, expect to pay $15 to $25 more per square foot since crews might need to hand-carry everything or use smaller machines.
Our local soil—usually sandy loam with a high water table in winter—means you’ll need extra drainage. I usually add 10 to 15 percent to the budget for drainage rock and perforated pipe. Skip this, and you could be looking at a failed wall after a rainy season.
Where your stone comes from matters too. If it’s from a Nanaimo quarry, costs stay reasonable. But if you want specialty blocks brought in, delivery charges add up. Lock Block systems at $40 to $60 per square foot are a good value if you like their look.
Permits aren’t a big cost factor for walls under 4 feet, but if you need engineering for a bigger wall, budget an extra $1,500 to $3,000 for plans and inspections.
Factors That Affect Stone Retaining Wall Cost
What you’ll pay for a stone retaining wall in the Parksville area mostly comes down to the stone you pick, the size of your wall, and how easy it is for contractors to get to your site. These three things explain most of the price swings I see.
Material Type and Quality
Your choice of stone is the biggest piece of the puzzle. Natural stone walls can cost anywhere from $30 to $150 per square foot, but that’s a huge range depending on what you pick.
Fieldstone and cobblestone are on the lower end, about $20 to $45 per square foot installed. They’re great for smaller garden walls and are usually easy to find locally. Limestone and slate are more, $25 to $85 per square foot, but they hold up better in wet weather.
Boulder walls run $25 to $50 per square foot and don’t need mortar, which cuts down on labour. Gabion walls—those wire cages filled with rock—are the cheapest at $10 to $40 per square foot. I like gabions for shoreline spots or anywhere drainage is a big deal.
If your stone comes from a local quarry, you’ll save on delivery. If it has to be shipped in from the mainland, expect your price to climb.
Wall Height and Length
Taller walls need stronger bases and more reinforcement, so both material and labour costs go up. Walls 2 to 4 feet high are typical for homes, and costs are easier to predict.
Go over 4 feet and you’ll need engineered plans and a concrete footer, not just gravel. That adds $18 to $55 per linear foot just for the foundation. Structural engineers charge $100 to $220 per hour for these plans.
Longer walls cost more overall, but you get a bit of a volume discount since equipment and setup costs are spread out. A 50-foot wall might run $2,000 to $10,000, but a 100-foot wall isn’t necessarily double that.
Cost doesn’t scale evenly with height—a wall twice as tall might cost three times as much because of the extra engineering and foundation work required.
Site Access and Terrain
How easily crews can get to your site makes a huge difference in labour charges. If trucks and excavators can roll right up, you’ll save money. If not, costs go up—sometimes a lot.
Building on a slope can cost up to three times more than flat ground (retaining wall installation). Around Parksville, lots of properties have tricky terrain, so deeper footings and better drainage are a must. If you’re dealing with rocky ground, you might need blasting or special equipment.
If contractors can’t bring machinery to the wall site, and have to carry materials by hand, labour costs can jump 20% to 50%. Tight spaces, mature landscaping, or rocky outcrops all make things more complicated.
Soil matters too. Clay-heavy soils here need good drainage to avoid water buildup in winter. Adding a French drain costs $10 to $30 per linear foot, but it’s worth it to avoid problems down the road.
Comparing Stone Retaining Wall Types and Alternatives
In BC’s coastal climate, the material you choose really does make a difference in both upfront and long-term costs. Natural stone usually comes in at $25-40 per square foot installed, gabion systems around $20-30, and engineered block walls fall between $15-25 per square foot.
Natural Stone Wall Cost Considerations
Natural stone walls are the biggest investment, but I think the durability is worth it most of the time. The stone itself costs $8-15 per square foot, and labour adds another $15-25 per square foot depending on the build.
Local fieldstone is at the lower end, while limestone or granite pushes the price up. If you’re using irregular stone, it takes more skill (and time) to fit together, so labour costs climb. Plus, natural stone is heavy, so you’ll need equipment—especially if your property’s on a slope.
In Parksville’s wet winters, natural stone holds up really well. It doesn’t fall apart from freeze-thaw like some other materials. With good drainage, these walls can last over 100 years, so the long-term cost isn’t as scary as it looks at first.
Gabion Wall Pricing
Gabion walls—those wire cages filled with rock—have a distinctive, modern look. I’ve built these for $20-30 per square foot locally, with the price depending on the cage and rock you use.
The cages themselves cost $15-25 per linear foot, and you’ll need $50-80 per tonne for fill. Most jobs need 1.5-2 tonnes of rock per cubic metre of wall. Using local rock keeps prices down.
Building gabions goes faster than stacking stone, since the cages do most of the work. I can usually finish a gabion wall in about 60% of the time it takes for a dry-stacked stone wall. Drainage is built in, so you don’t need as much foundation work. The industrial look isn’t for everyone, but for modern yards or waterfronts, gabion systems are a solid value.
Block and Concrete Retaining Walls
Block retaining walls are the most predictable for pricing—usually $15-25 per square foot installed. Concrete block walls cost less than natural stone but still last 50 years or more.
Blocks run $3-8 each, depending on size and finish. Plain grey is cheapest; textured or coloured blocks cost more. You’ll need about 12-15 blocks per square foot of wall.
Blocks go up faster than stone, thanks to their regular size. A job that takes three days with stone might only take two with blocks. No mortar needed, but don’t skip the base prep and drainage.
In Parksville’s weather, modern blocks hold up well and don’t fade like the old ones did. You can get all kinds of textures that look like natural stone, at about 60% of the cost. For curved walls or terraces, the uniform size makes planning and building much simpler.
Labour and Professional Installation Costs
Labour is a big chunk of your project cost—usually 40 to 60 percent. In BC, retaining wall labour runs $50 to $75 per hour, but your final price depends a lot on your site and wall design.
Local Labour Rates in BC
From what I’ve seen, retaining wall contractors around Parksville and central Vancouver Island usually charge between $215 and $235 an hour for both equipment and labour. Castle Retaining Walls lists $215 per hour for Magnum Stone installs, and that covers the machine and laser leveling gear.
If you’re thinking in terms of square footage, retaining wall installs usually run $35 to $65 per square foot for the full job. Honestly, stone walls here tend to land at the higher end because hauling materials to the island isn’t cheap, and proper installs take real skill.
Some contractors offer day rates too. A 10-hour day is about $2,150 to $2,350, but that’s just labour and equipment—materials are extra.
Influence of Project Complexity on Labour Cost
Labour costs really depend on what your site throws at you. A simple job on flat ground with easy access is much cheaper than a wall on a steep slope or anywhere that needs a lot of digging.
Walls over four feet tall almost always need engineering stamps in BC, which makes things slower and a bit more complicated. Around Parksville, rocky soil is pretty common, so contractors often hit bedrock and need special gear to break through.
If machines can’t get to your site, manual labour goes way up. More corners, curves, or tricky drainage all mean more hours. It adds up fast.
Additional and Hidden Costs to Plan For
Stone retaining walls around Parksville and central Vancouver Island come with more costs than just the stone. Excavation, drainage, and permits can really add to the bill, especially with our wet climate and all the municipal red tape.
Excavation, Site Preparation, and Removals
Excavation costs swing a lot depending on what’s under the surface. Rocky ground in Parksville can push excavation from $50 up to $150 per cubic metre.
Tree stumps are a hidden headache. Stump removal is often overlooked, but if there’s one near the wall, it has to go or you’ll get settling later. That’s $150 to $500 per stump, depending on size.
If you’re on a slope, benching or terracing before building the wall adds another $800 to $2,500 for a typical home project. Working close to houses or gardens means extra care and protection, which can bump labour up by 15 to 25 percent.
Drainage, Filter Fabric, and Reinforcement
Hydrostatic pressure is a big deal here, thanks to all the rain. I never skip proper drainage—water behind the wall will wreck even the best build.
Filter fabric runs $0.75 to $2.50 per square metre and keeps fine soil out of the drainage rock. I always put it between backfill and native soil. Perforated pipe is another $8 to $15 per metre, plus you need to connect it to a proper outlet.
Delivered gravel backfill is $40 to $75 per cubic metre. For a 4-foot wall, you’ll probably need 0.3 to 0.5 cubic metres per linear foot. If the wall’s over 4 feet, geogrid reinforcement is needed—expect $12 to $25 per square metre of wall face. These extra costs for drainage and reinforcement usually make up 15 to 30 percent of the total, but skipping them is just asking for trouble.
Permits, Engineering, and Municipal Requirements
Parksville and Qualicum Beach both want permits for walls over 1.2 metres. Fees range from $200 to $800, depending on how big and complex the wall is.
If your wall’s over 1.5 metres, you’ll need stamped engineering drawings. I usually budget $1,200 to $3,500 for that, which covers soil checks, calculations, and plans. Sometimes, the engineer will insist on a geotech assessment—add $800 to $2,000 for that.
Municipal inspections happen at the footing and backfill stages. These are usually part of the permit fee, but if you fail an inspection, you’ll need to fix things and call them back, which can delay the job by a week or two. I always double-check local rules and setbacks before starting, because mistakes there can get expensive.
Planning for Long-Term Performance and Value
Stone retaining walls here have to stand up to coastal moisture, freeze-thaw cycles, and a lot of rain—these things really test how well the wall holds up over the years. The choices you make now, and who you hire, decide if your wall lasts or if you’re fixing it in a decade.
Durability and Maintenance Patterns
A well-built natural stone wall in our climate can last 50 to 100 years, but I’ve seen walls fall apart in five if the drainage is bad. It all comes down to how you handle water and the depth of the foundation.
Dry-stacked fieldstone or limestone walls don’t need much upkeep once settled. Just check for settling after the first winter and reset any stones that move. Mortared veneer walls need a look every 3-5 years, especially where water runs over them.
Honestly, drainage design matters more than stone choice for how long a wall lasts. If you skip weeping tile and gravel backfill, the wall will bulge and fail, no matter how fancy your stone is.
Allan Block and Keystone systems are more predictable since they come with built-in drainage and lock together. If something settles, you can usually fix just that part instead of tearing out the whole wall.
Design Considerations for Local Conditions
Our winters are roughest on retaining walls—rain-soaked clay soils push hard between November and February. I always design for these months, not just the dry season.
Some key factors that change cost and performance:
- Soil type: Heavy clay means deeper foundations and better drainage than sandy soil
- Groundwater: Near rivers or springs? You’ll need French drains or even a sump
- Slope angle: Steep grades (over 2:1) need engineered solutions and grid reinforcement
- Access: If machines can’t get in, expect 40-60% higher install costs
For anything over 1.2 metres, I always suggest a structural engineer look over the design before you start. Spending $800-$1,200 upfront can save you tens of thousands in fixes later.
If you’re close to the ocean, salt spray is a factor—limestone and sandstone won’t last as long as granite or basalt within 500 metres of the shore.
Selecting the Right Contractor in Parksville and Area
Finding a good retaining wall contractor in Parksville means looking for real masonry and drainage expertise, not just someone who does landscaping. I always check three things before hiring for walls over a metre tall.
First, make sure they have at least $2 million in liability insurance and are registered with WorkSafeBC. That protects you if something goes wrong. Second, get references from jobs they did at least five years ago—you want to see how their work holds up after a few winters.
Third, see if they really know the local building rules. Parksville wants permits for walls over 1.2 metres, and a good contractor should handle permits without needing to be told. They should also know when you need an engineer and have local contacts.
I’ve seen people go with the cheapest contractor and regret it later—bad drainage, shallow footings, you name it. The price gap between a specialist and a general landscaper is usually 15-25%, but the difference in quality is way bigger.
Ask about their experience with Keystone or Allan Block if you want a segmental wall, or how they set stone for natural builds. Photos of walls that are 10+ years old are way more useful than just their latest job.
Frequently Asked Questions
Stone retaining wall costs in BC range from $20 to $95 per square foot, depending on materials and how tricky the install is, with labour rates around $215 per hour for specialists. Local stuff like soil, drainage, and municipal rules all play a part in both the upfront cost and how the wall holds up over time.
What are the average labour and material costs associated with constructing a stone retaining wall in British Columbia?
Labour for specialised retaining wall work is about $215 an hour or $2,150 for a 10-hour day in BC. That usually covers the operator and laser gear, but not materials.
Materials are all over the map. Boulder walls can be $20 to $85 per square foot, gabion walls run $10 to $55, and natural stone projects fall anywhere from $10 to $90 per square foot, depending on the stone and design.
For a full install with everything included, I usually quote $80 to $88 per square foot for some wall systems. A typical 50-foot-long, 4-foot-tall wall comes out to $640 to $704 per block installed.
How does the complexity of the design influence the overall expense of a stone retaining wall per linear foot in the Parksville and central Vancouver Island region?
The more complex the design, the more hours it takes. Hand-selecting and carefully fitting stones is way more time-consuming than just stacking them—think Class A versus Class C work.
Stepped walls that follow height rules are cheaper than tall, engineered vertical ones. Every step back means more compaction and sometimes extra geotech testing, which adds time and pro fees.
If you want custom features—stairs, curves, benches—expect to pay more for planning and skilled labour. Sites with tough access or serious slopes can add 20 to 40 percent to the base cost because of all the prep work.
Can local climate and terrain conditions in BC affect the cost of building a stone retaining wall, and if so, how?
Absolutely. All the rain on central Vancouver Island means drainage is non-negotiable behind every wall. Skip it, and water pressure will wreck your wall, so I always include drain rock, perforated pipe, and filter fabric.
Soil changes a lot around Parksville. Sandy spots are easier, but clay expands when wet and needs deeper digging, which raises costs. Rocky ground means breaking through before you can even start the base.
Coastal spots get salt and freeze-thaw cycles, so I usually suggest granite over softer stones—it lasts longer, even if it costs more upfront.
What considerations should be taken into account for maintenance and longevity when budgeting for a stone retaining wall in BC?
How you prep the base decides if your wall lasts 15 years or 50. I dig to stable soil and use compacted gravel, even though it adds to the initial bill.
Drainage systems need a check every so often to make sure they’re not clogged. I’d budget for a drain cleanout every 5 to 7 years in silty areas—it’s way cheaper than fixing a failed wall.
Stone choice matters too. Blue granite and mountain ash behave differently with all the moisture and temperature swings. Granite barely needs any care, just clear off plants now and then, but softer stones might need repointing or stabilization after 10-15 years.
Are there any regional regulations or permits in Parksville and central Vancouver Island that could impact the cost per foot of a stone retaining wall?
Most towns here want permits for walls taller than 1.2 metres. Engineered walls need professional design from third-party firms, which can add $1,500 to $3,500 depending on the project.
Setback rules are different in every area. Parksville’s specs don’t match the next town over, so I always check bylaws before quoting—setback changes affect how much space and material you need.
Stepped walls over basic height limits need geotech testing and compaction checks. Licensed geotechs have to inspect each level before you build up, and I usually budget $500 to $800 per inspection.
How do varying types of materials and stone choices factor into the per-foot cost of constructing a retaining wall in BC?
Blue granite and mountain ash are the two most common natural stone options I end up using. Both come in 2-foot, 3-foot, and 4-foot slabs, and honestly, their prices are usually pretty close. The real difference? It’s all about colour and how they weather over time. So, picking one over the other is more about what looks good to you and what fits your project.
Gabion walls cost $10 to $40 per square foot, and they’re often cheaper than dry-stacked natural stone, depending on the job. Gabions are great for stopping erosion, but let’s be real—they don’t have that polished look most folks want if the wall’s front and centre.
When I’m quoting, I break installations down by finish quality. This changes the materials I use and how much labour goes in. Class A walls? Those are built with carefully chosen stones, and every little gap gets shimmed for a really sharp finish. For Class B, I’ll skip some of the fussier shimming to keep things affordable. And then there’s Class C—these are all about function, not looks, so stones get placed wherever they fit best. Perfect for spots where nobody’s judging appearances.
